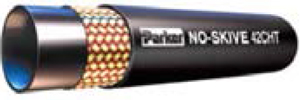

| 42CHT |
Hydraulic Hose - High Temperature
SAE 100R 1AT |
 |
|
| |
 |
Part
Number |
|
 |
| Hose I.D. |
|
 |
| Hose O.D. |
|
 |
Working
Pressure |
|
 |
Minimum
Bend Radius |
|
 |
| Weight |
|
 |
| Fitting |
|
| inch |
mm |
inch |
mm |
psi |
MPa |
inch |
mm |
lbs/ft. |
kg/m |
Series |
| 42CHT-4 |
1/4 |
6.3 |
0.53 |
13.4 |
2750 |
19.3 |
4 |
100 |
0.17 |
0.24 |
43 |
| 42CHT-6 |
3/8 |
10.0 |
0.69 |
17.4 |
2250 |
15.8 |
5 |
125 |
0.24 |
0.34 |
43 |
| 42CHT-8 |
1/2 |
12.5 |
0.81 |
20.6 |
2000 |
14.0 |
7 |
180 |
0.31 |
0.43 |
43 |
| 42CHT-10 |
5/8 |
16.0 |
0.94 |
23.8 |
1500 |
10.5 |
8 |
200 |
0.37 |
0.51 |
43 |
| 42CHT-12 |
3/4 |
19.0 |
1.09 |
27.8 |
1250 |
8.7 |
9-1/2 |
240 |
0.47 |
0.65 |
43 |
| 42CHT-16 |
1 |
25.0 |
1.40 |
35.6 |
1000 |
7.0 |
12 |
300 |
0.70 |
0.97 |
43 |
|
| |
• 사용용도 : 광물성 유압 작동유, 윤활유 사용라인
• 내면고무 : 내유성 합성고무
• 보강층 : 1 W/B
• 외면고무(Cover) : 내후성 합성고무 |
• 피팅 : 43 시리즈 (pg. B-37)
• 온도범위 : -40℃ 부터 +150℃ |
|
| |
 WARINING : This product can expose you to chemicals including Carbon Black, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov. |
| |
